Edge-OLT
EasyPON makes deployment of passive optical networks in FTTH, FTTR, Data Centers, 5G Backhaul or EdgePON environments Easy!
Our distributed architecture of compact, passively cooled, outdoor mounted, low power consuming PON OLT and network switches help
reduce latency, reduce data center construction, powering and cooling costs.
The EdgePON-OLT Series is a highly versatile line of outdoor passively cooled OLT for PON. The unique devices can be mounted on light poles, OSP cable strand or in a cabinet, but more importantly does not require any external cooling. The devices also offer a variety of powering options from 110vac, CATV line powering, -48vdc or in some cases solar via an integrated data \ POE port for OoB wireless failover.
Edge-10X OLT
Low Power Consumption: 32 Watts
Standard Power Supply: 110vac \ POE
Optional Power: -48vdc or CATV
Light Weight: 12Lb
1 RJ45 - POE & 1 Port 1G
The Edge-10X r-OLT series is available with 4 port 10G SFP+ port; it's designed to accommodate 1 TiBit XGS\EPON OLT SFP+ or EasyPON - XGS OLT SFP. It can be mounted on a pole, strand or in a cabinet, but more importantly does not require any external cooling. consuming only 20 watts its' energy efficiency is unparalleled. It can be powered via 110 AC, CATV power, -48 vdc or POE. The POE can be used to power the unit, OBB management, or wireless failover.

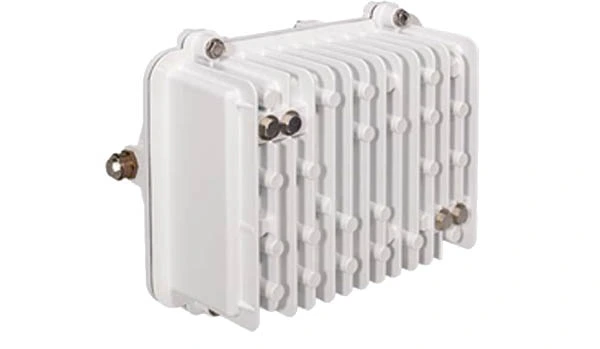

Edge-2508 OLT
Low Power Consumption: 32 Watts
Standard Power Supply: 110vac
Optional Power: -48vdc or CATV
Light Weight: 25Lb
No POE
Network Controller: Optional Built-In
The Edge-2508 r-OLT can accommodate up to 7 XGS 10G PON OLT Sticks. Equipped with optional built-in PON Controller; it's designed to accommodate either 7 TiBit XGS or EPON olt SFP+ sticks. It can be mounted on a pole, strand or in a cabinet, but more importantly does not require any external cooling. consuming only 32watts its energy efficiency is unparalleled. It can be powered via 110 AC, CATV power or -48 vdc.

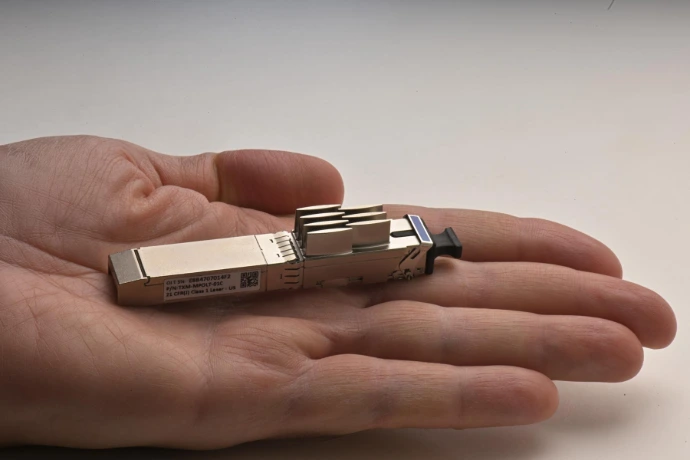

Combine with your choice of SFP OLT
